Native Program

In this Quickstart guide, you’ll learn how to start with Código’s Interface Description Language (CIDL) from scratch using our web-based IDE, Código Studio. Código Studio has all the necessary tools and programs to develop using the CIDL. The CIDL is the file used as input to Código's AI generators.

note

In this Quickstart we will generate content for Solana Native. If you want the same guide for Anchor check the Solana Anchor Quickstart

Let’s get started!

1. Write the CIDL

Open Código Studio
Create a new file name counter.cidl
Copy and paste the following CIDL code into the counter.cidl file you created

cidl: "0.9"
info:
  name: counter
  title: Counter
  version: 0.0.1
  license:
    name: Unlicense
    identifier: Unlicense
types:
  GreetingAccount:
    fields:
      - name: counter
        type: u32
methods:
  - name: increment
    inputs:
      - name: greeting_account
        type: sol:account<GreetingAccount>
        attributes: [ sol:writable, sol:init_if_needed]
  - name: decrement
    inputs:
      - name: greeting_account
        type: sol:account<GreetingAccount>
        attributes: [ sol:writable, sol:init_if_needed]

The CIDL is composed of a few top-level objects. In the counter CIDL we can see the info, types, and methods objects.

In the info object we can define the program metadata i.e. name, version, description, license, and more. Check the info section to learn more
In the types object we can define our program's custom types. Check the custom types section to learn more
In the methods object we can define our program instructions, these are the instructions that will be called from the client or from other programs. Check the methods section to learn more

2. Generate code

With the CIDL completed, we can generate the smart contract and TypeScript client library. For that, open a new terminal; Terminal -> New Terminal


New Terminal

Type the following command to execute the generator:

codigo solana generate cidl.yaml

When it completes generating the code, you will see two new directories in the explorer as follows:


Directories

program this directory contains all the files for a native solana program and the stubs where we will implement the business logic.
program_client this directory will contain all the files for the TypeScript client library.

3. Implement the business logic

When we expand the program directory, we will see numerous files corresponding to a native solana program; we don’t need to change anything on these files; thus, we can ignore them. The files we are interested in and where we will implement the business logic are inside the src directory.

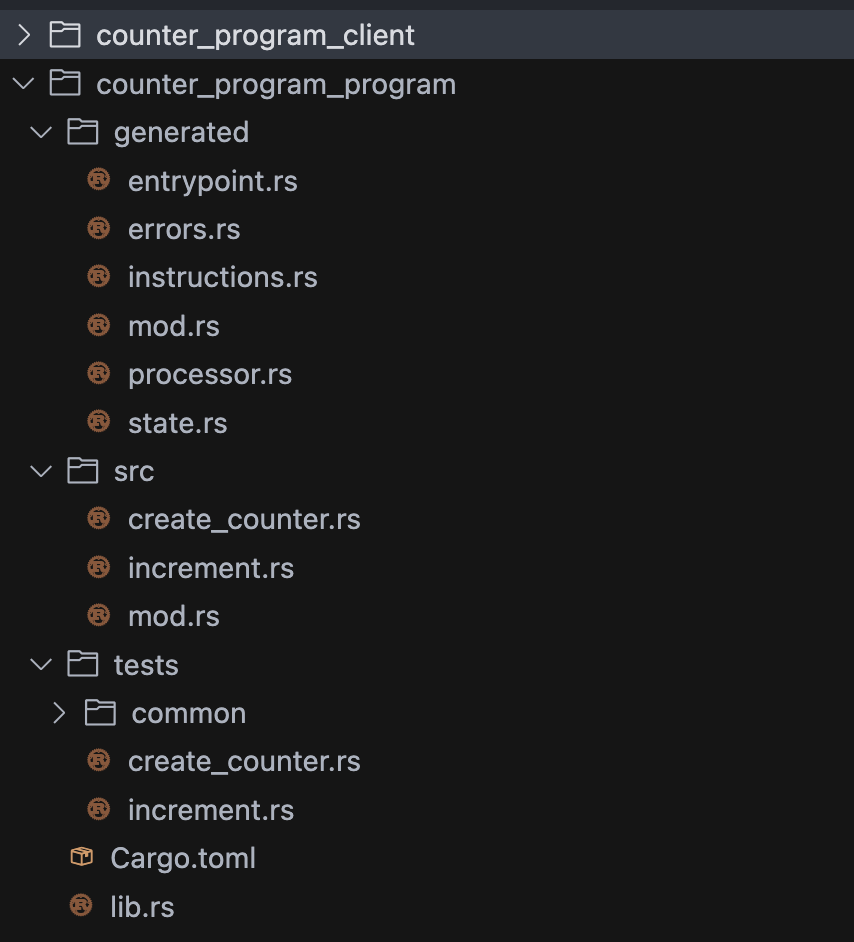

Stub Directory

If we open one of those files, we will see a function with the same name as the file. Each file corresponds to a method defined in the CIDL. Inside each file, we can see a function where we will be implementing the business logic, the parameters of the function are determined by the inputs defined for the method in the CIDL.

3.1 Implement `increment`

Open the file program/src/increment.rs and replace the comment
// Implement your business logic here... with the following line:

/// Accounts:
/// 0. `[writable, signer]` fee_payer: [AccountInfo] Auto-generated, default fee payer
/// 1. `[writable, signer]` greeting_account: [GreetingAccount]
/// 2. `[]` system_program: [AccountInfo] Auto-generated, for account initialization
pub fn increment(
  _program_id: &Pubkey,
  greeting_account: &mut Account<GreetingAccount>,
) -> ProgramResult {
  greeting_account.data.counter += 1;

  Ok(())
}

3.2 Implement `decrement`

Open the file program/src/decrement.rs and replace the comment
// Implement your business logic here... with the following line:

/// Accounts:
/// 0. `[writable, signer]` fee_payer: [AccountInfo] Auto-generated, default fee payer
/// 1. `[writable, signer]` greeting_account: [GreetingAccount]
/// 2. `[]` system_program: [AccountInfo] Auto-generated, for account initialization
pub fn decrement(
  _program_id: &Pubkey,
  greeting_account: &mut Account<GreetingAccount>,
) -> ProgramResult {
  greeting_account.data.counter -= 1;

  Ok(())
}

4. Build and deploy

Código Studio comes with all the tools and programs for building and deploying solana programs.

First, let’s build the program. Open a new terminal by going to Terminal -> New Terminal. Navigate to the program directory by typing the command cd program, and inside the program directory, type the following command:

cargo build-sbf

This command will take a few seconds to complete. When the previous command completes, open another terminal by going to Terminal -> New Terminal. In the new terminal, type the command:

solana-test-validator

This command will start a solana validator to where we will be able to deploy the program. Keep the terminal open so the validator continues running. Finally, return to the terminal where you built the program and type the command:

solana program deploy target/deploy/counter.so

This command will deploy the built program to the local solana validator we ran in the previous step. When the command completes, it will return the Program Id of the program and save it for later.

5. Integrate the client

Wow! We have built and deployed a Solana program in just a few minutes. The last step is to call this program from our application. For this QuickStart, our application will be a command line interface.

Create a new file inside the program_client directory named app.ts. The file's content is the following:

tip

Copy and paste your program ID in line 9 of the app.ts file.

import {decrementSendAndConfirm, getGreetingAccount, incrementSendAndConfirm, initializeClient} from "./index";
import {Connection, Keypair, PublicKey} from "@solana/web3.js";
import * as fs from "fs/promises";
import * as path from "path";
import * as os from "os";

async function main(feePayer: Keypair) {
  // TODO: Specify the program Id we saved from when we deploy it
  const progId = new PublicKey("PASTE_YOUR_PROGRAM_ID");

  // Create a new Solana connection
  const connection = new Connection("http://127.0.0.1:8899", {
    commitment: "confirmed"
  });

  initializeClient(progId, connection);

  // 0. Create keypair for the Greeting account
  const greetingAccount = Keypair.generate();

  // 1. Increment the counter by 1
  await incrementSendAndConfirm({
    signers: {
      feePayer,
      greetingAccount
    }
  });
  let account = await getGreetingAccount(greetingAccount.publicKey);
  console.info(account);

  // 2. Decrement the count by 1
  await decrementSendAndConfirm({
    signers: {
      feePayer,
      greetingAccount
    }
  });
  account = await getGreetingAccount(greetingAccount.publicKey);
  console.info(account);
}

fs.readFile(path.join(os.homedir(), ".config/solana/id.json"))
        .then(file => main(Keypair.fromSecretKey(new Uint8Array(JSON.parse(file.toString())))));

Finally, execute the app.ts file. Open a new terminal by going to Terminal -> New Terminal. Navigate to the sdk directory cd program_client; install the node dependencies executing the command npm install, and install the dev dependency ts-node executing the command npm install --save-dev ts-node. Finally, execute the file using the following command:

npx ts-node app.ts

If everything went Ok, you should see the following output:

{ counter: 1 }
{ counter: 0 }

6. Next steps

Congratulations! 🎉👏 you just created your first Solana program using the CIDL and integrated the generated TypeScript client library with an application. To summarize what we learned:

CIDL stands for Código Interface Description Language, and it is the input for Código’s AI Generator.
After completing the CIDL, developers only need to implement the business logic of the program.
100% of the client libraries and program boilerplate are generated.
Código Studio has all the tools and programs to develop Solana programs using the CIDL.

These links may help you on your journey to writing Solana programs with the CIDL:

Join the Código community 💚

Código is a growing community of developers. Join us on Discord and GitHub
